LED SMD CHIP
-
RGBSMD 6070 7in1 led diodeAdd to cart
SMD 6070 7in1 led diode
Power:7-21W
Size:6.0*7.0*1.25mm
Wavelength:Blue:460-470NM, Deep Red:660-670NM, Far Red:725-735NM, Yellow green:555-565NM
Voltage: Blue:2.8-3.4V, Deep Red:1.8-2.4V, Far Red:1.8-2.4V, Yellow green:2.8-3.4V
Current:7*305mA-7*700mA
Luminous flux:460nm:30-35LM,560nm:150-170LM,680nm:240-260MW,729nm:240-260MW
Application: Medical lighting
-
0603ROHS 0603 red amber blue green white IR purple uv 1615RGB led diodeAdd to cart
ROHS 0603 red amber blue green white IR purple uv 1615RGB led diode
Power:0.06W
Wavelength:red 620-630NM,deep red 660-670nm, far red 730-740nm,infrared led 850nm/940nm,blue:460-470nm,purple395nm-405nm/365-370nm/380-390nm,green:520-530nm,yellow green:568-575nm,white:600-7000K/8000-12000K
Current:5-20mA
Voltage:red:1.8-2.4V,IR led :1.4-1.8V,green,blue,white:2.6-3.2V
Size:1.6*0.8mm
-
0603ROHS 0603 with 30degree lens red660nm UVA365nm led diodeAdd to cart
ROHS 0603 with 30degree lens red660nm UVA365nm led diode Type:0603 with 30degree lens Wavelength: 620NM/630NM/650NM/660NM/365NM/385NM/420NM/405NM/395NM/570NM/560NM/520NM Power:0.06W Current:5-20mA Size:1.6*0.8 Voltage:Red:1.8-2.4V,UVA:3-4V,Yellow green 570nm:1.8-2.4V, Green:2.8-3.4V Application: indicator lighting, medical.
-
20W18w 3v 6565 smd led white cri80 for medical lightingAdd to cart
18w 3v 6565 smd led white cri80 for medical lighting
Power:18W Voltage:3-3.5v
Current:1000-6000mA
Package:6.5*6.5MM
View angle:60degree quartz lens.
CRI:80
Color temperature:3800-4500K/5000-6000K/6000-7000K
Application: Medical lighting
-
20Worange 600nm 605nm 610nm 18w 2v 6565 led diodeAdd to cart
orange 600nm 605nm 610nm 18w 2v 6565 led diode
Power:18W
Voltage:1.8-2.6V
Current:1000-6000mA
Package size:6.5*6.5mm
Wavelength:600-610nm
Application: Medical, Lighting
-
08052012 with ic 1.5hz flash red single color 0805 led diodeAdd to cart

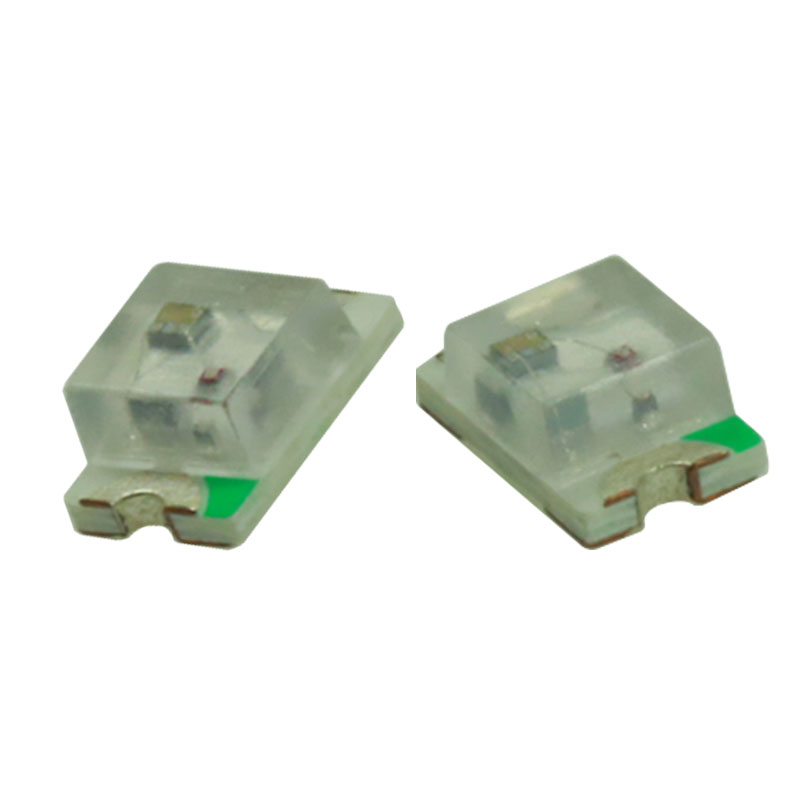

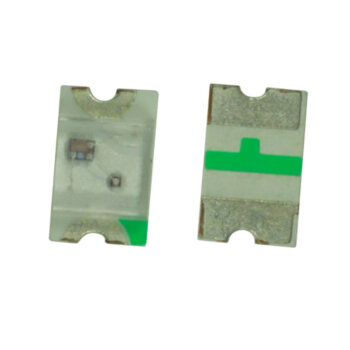

2012 with ic 1.5hz flash red single color 0805 led diode
Power:0.06w
Voltage:2.8-4.5v
Wavelength:620-630nm
Brightness:80-180mcd
Current:20mA
Package size:2.0*1.25*0.8mm
Application: Flash oscillator for timer applications
-
3528infrared cob led light therapy lampAdd to cart
infrared cob led light therapy lamp
power :be customized
wavelength:620-625nm 650nm 660-670nm 590nm 525-530nm 463-468nm 810nm 830nm 850nm 940nm 1064nm etc be customized
Dimensions size:be customized
power :be customized
1. Utilizing the photothermal effect, using specific wavelengths of light to illuminate the skin or certain tissue cells of the human body to promote or inhibit growth, in order to achieve therapeutic goals.
Phototherapy utilizes biological tissues to absorb light of different wavelengths and convert them into thermal and chemical energy, resulting in a series of chemical reactions in the body to achieve the desired therapeutic effects
The therapeutic mechanism of phototherapy can be summarized as follows:
Decomposition → Photopolymerization → Photooxidation → Photosensitization
4. Compared to traditional light sources, LEDs better meet the special requirements of phototherapy for light sources, which include a wide range of light wavelength selection, controllable and adjustable radiation intensity and radiation spot, pure light color, no harmful spectral components, and electrical safety. -
3WXB-D 2525 led diode chipAdd to cart
XB-D 2525 led diode chip
Power:1-3w
SMD size:2.45*2.45MM
Color:red ,amber,blue,green,white
Current:350-700MA
Voltage:Red:1.8-2.4V, B/G/A/W: 2.8-3.5V
Red:620-630nm,blue:450-470nm,green:490-530nm,white:5000-7000K (Color temperature can be customized according to specific requirements.) Applications
– Appliances & Tools
– Entertainment
– Factory Automation
– Car Lighting
– Medical Lighting
– Outdoor & Industrial Lighting -
LED Phototherapy productsled 5050 diode 630nm+850nm+940NM for Slimming lampAdd to cart

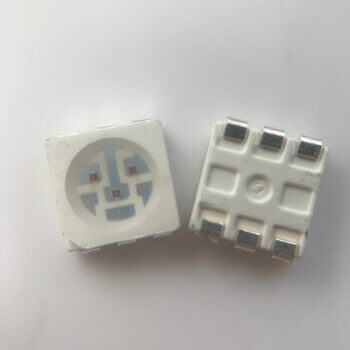

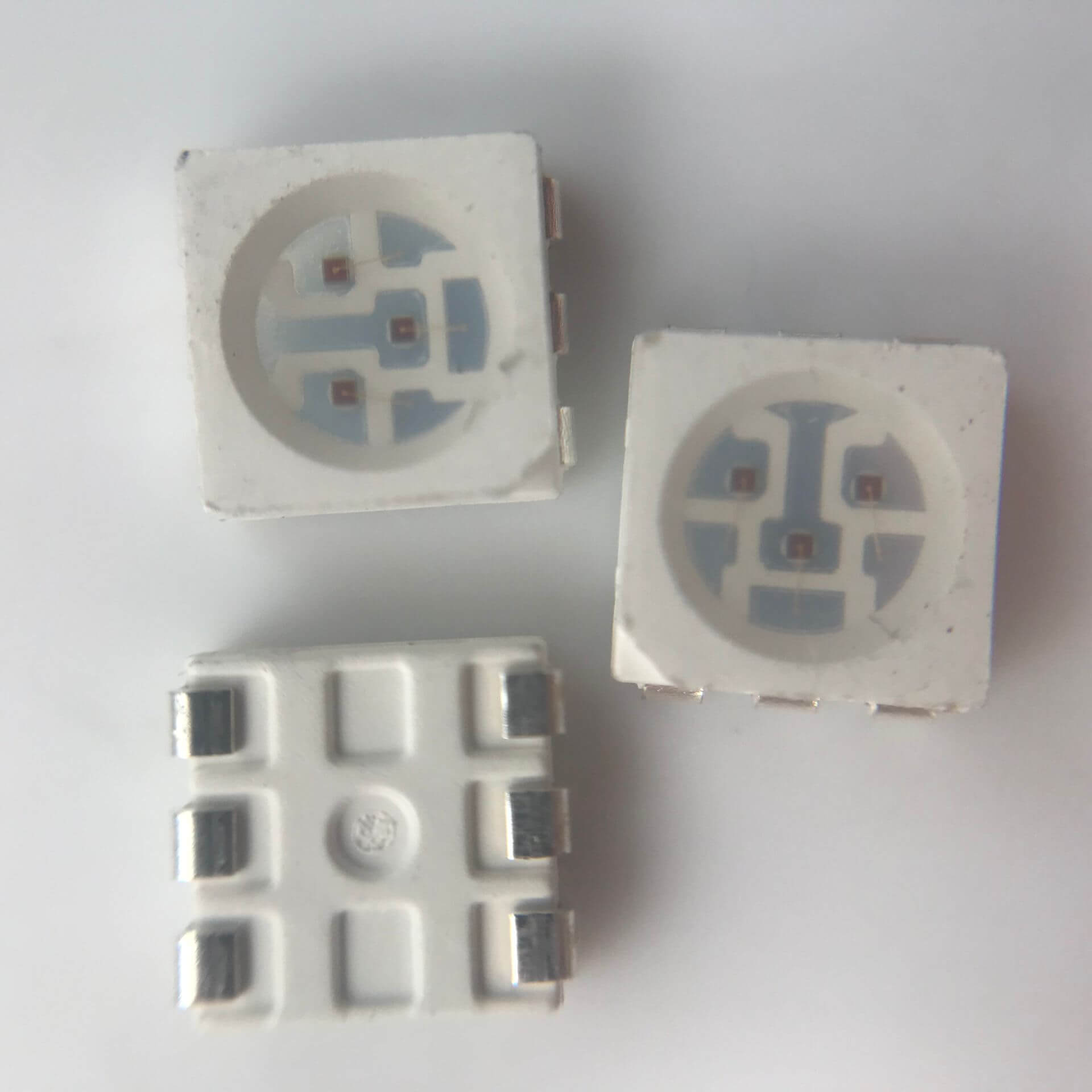

led 5050 diode 630nm+850nm+940NM for Slimming lamp
Power:0.5W
LED size:5*5MM
Current:60MA*3
Voltage:630NM 1.8-2.4V, 850NM:1.4-1.8V,940NM: 1.4-1.8V
Wavelength: 630±5NM+840±10NM+940±10NM
We customize products with different wavelengths based on the type of phototherapy lamp.
