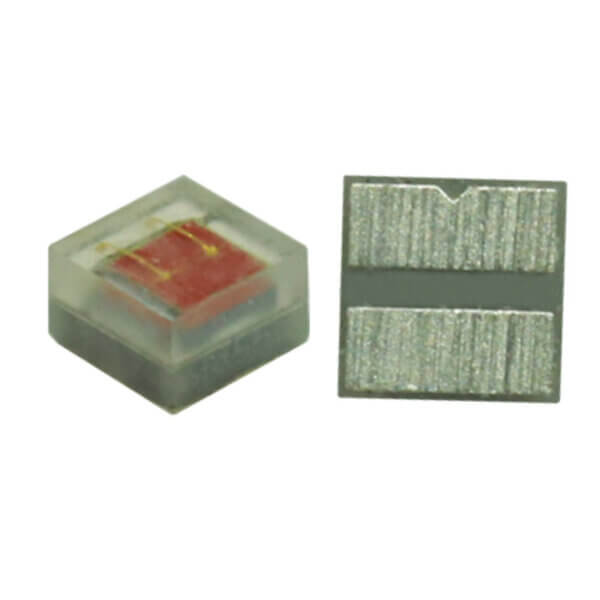

Replace OSLON 1414 osram red blue green white amber led diode
Power:1-5w
SMD size:1.4*1.4MM
Color:red ,amber,blue,green,white
Current:350-1000MA
Voltage:Red:1.8-2.4V, B/G/A/W: 2.8-3.5V
Red:620-630nm,blue:450-470nm,green:490-530nm,white:5000-7000K (Color temperature can be customized according to specific requirements.)
Applications
– Appliances & Tools
– Entertainment
– Factory Automation
– Indoor Lighting
– Medical Lighting
– Outdoor & Industrial Lighting
– Projection & Display
– Robotics
GC VJLPL1.13 , GB VJLPL1.F3 , GR VJLPL1.23 , GW VJLPL1.CM
The evaluation of eye safety occurs according to the standard IEC 62471:2006 (photo biological safety of
lamps and lamp systems). Within the risk grouping system of this IEC standard, the device specified in this
data sheet fall into the class moderate risk (exposure time 0.25 s). Under real circumstances (for exposure
time, conditions of the eye pupils, observation distance), it is assumed that no endangerment to the eye ex
ists from these devices. As a matter of principle, however, it should be mentioned that intense light sources
have a high secondary exposure potential due to their blinding effect. When looking at bright light sources
(e.g. headlights), temporary reduction in visual acuity and afterimages can occur, leading to irritation, annoy
ance, visual impairment, and even accidents, depending on the situation.
Subcomponents of this device contain, in addition to other substances, metal filled materials including silver.
Metal filled materials can be affected by environments that contain traces of aggressive substances. There
fore, we recommend that customers minimize device exposure to aggressive substances during storage,
production, and use. Devices that showed visible discoloration when tested using the described tests above
did show no performance deviations within failure limits during the stated test duration. Respective failure
limits are described in the IEC60810.
